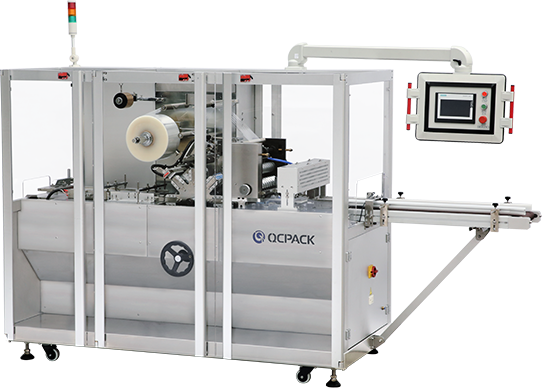

BTB-300STransparent film three-dimensional packaging machine

This machine is suitable for automatic film packaging of single box items in various industries (with gold wire).

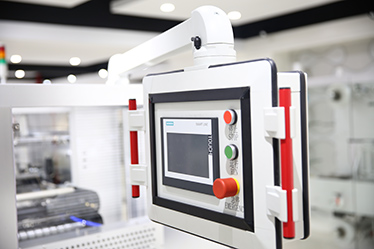

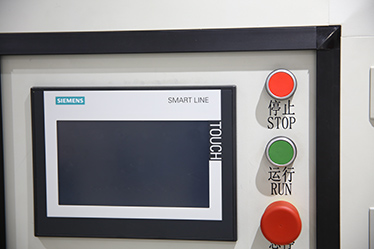

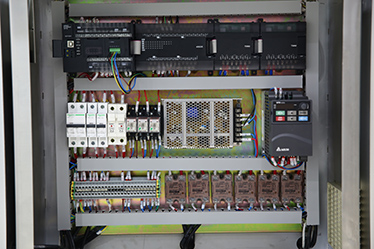

It adopts the most advanced imported PLC programmable controller with safety door protection and alarm device to ensure the stability of the machine at high speed. Various setting operations can be easily completed on the touch screen. There is no need to adjust the height of the working table on both sides of the machine when changing the mold, and there is no need to disassemble and assemble the discharge chain.

Back to list >

BTB-300STransparent film three-dimensional packaging machine

This machine is suitable for automatic film packaging of single box items in various industries (with gold wire).

It adopts the most advanced imported PLC programmable controller with safety door protection and alarm device to ensure the stability of the machine at high speed. Various setting operations can be easily completed on the touch screen. There is no need to adjust the height of the working table on both sides of the machine when changing the mold, and there is no need to disassemble and assemble the discharge chain.

Back to list >

BTB-300STransparent film three-dimensional packaging machine

This machine is suitable for automatic film packaging of single box items in various industries (with gold wire).

It adopts the most advanced imported PLC programmable controller with safety door protection and alarm device to ensure the stability of the machine at high speed. Various setting operations can be easily completed on the touch screen. There is no need to adjust the height of the working table on both sides of the machine when changing the mold, and there is no need to disassemble and assemble the discharge chain.

Back to list >

BTB-300STransparent film three-dimensional packaging machine

This machine is suitable for automatic film packaging of single box items in various industries (with gold wire).

It adopts the most advanced imported PLC programmable controller with safety door protection and alarm device to ensure the stability of the machine at high speed. Various setting operations can be easily completed on the touch screen. There is no need to adjust the height of the working table on both sides of the machine when changing the mold, and there is no need to disassemble and assemble the discharge chain.

Back to list >

BTB-300STransparent film three-dimensional packaging machine

This machine is suitable for automatic film packaging of single box items in various industries (with gold wire).

It adopts the most advanced imported PLC programmable controller with safety door protection and alarm device to ensure the stability of the machine at high speed. Various setting operations can be easily completed on the touch screen. There is no need to adjust the height of the working table on both sides of the machine when changing the mold, and there is no need to disassemble and assemble the discharge chain.

Back to list >

Product video

The main technical parameters

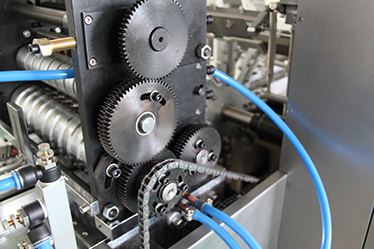

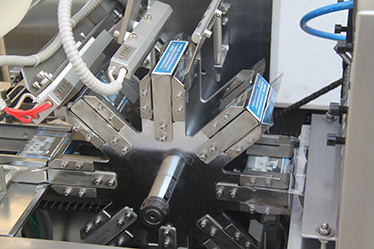

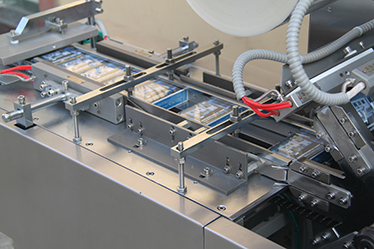

① This machine is a fully automatic high-speed transparent film packaging equipment. It adopts a multi-station turntable alternate packaging method. All wrapping and heat sealing actions are completed by cam transmission. It has the characteristics of fast speed and stable operation.

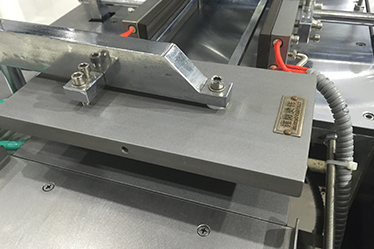

② You can pack items of different sizes by changing the mold. The newly designed multiple patented structure makes changing the mold easier and faster.

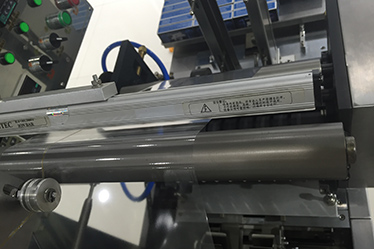

③ adopts a new double-rotating film cutter, the service life is increased by 5 times, and the film is more precise and smooth.
④ The is equipped with a static eliminator, which effectively eliminates the static electricity adsorbed on the packaging film and makes the film feeding more smoothly.
⑤ The frequency converter is used to adjust the packaging speed, which can reach 40 to 80 bags per minute according to the different packaging items.
⑥ is equipped with a double-sided wrinkle plastic surgery device to make the film packaging more skin-tight and more beautiful.
⑦ has the function of composite self-adhesive laser anti-counterfeiting unsealing line, which really plays the role of anti-counterfeiting and moisture-proof.
⑧ Automatic conveying and feeding can be connected to the fully automated unmanned production line.

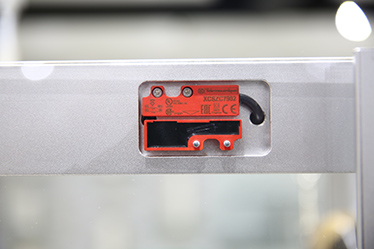

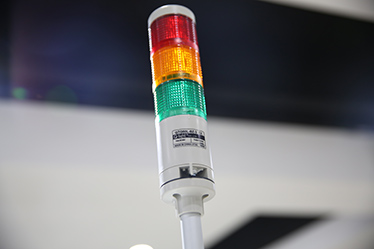

⑨ This machine adopts safety door protection and alarm device.
⑩ This machine is equipped with high and low temperature alarm devices.
? Stop without box.

Technical parameter

packaging BOPP smoke film and gold wire Power supply and total power 220V 50Hz 5kw
Packing speed 40-80 bags / min Machine weight 760kg
Maximum package size (L)240×(W)120×(H)60mm Machine dimensions (L)2001×(W)923×(H)1779mm
packaging BOPP smoke film and gold wire Power supply and total power 220V 50Hz 5kw
